Kinect Interactions with WPF - Part I: Getting Started

VBandi's blog

Syndication

Subscribe

Generic Content

Introduction

Microsoft has recently released V1.7 of the Kinect for Windows SDK. And they immediately made a mistake – there are so many new and awesome stuff in it, that it should be called 2.0 :)

The 1.7 SDK focuses on two key new features: Kinect Fusion and Kinect Interactions. Kinect Fusion is essentially a 3D scanner that enabled developers to create accurate 3D renderings in real time.


Kinect Fusion. Source: Kinect for Windows blog



While Kinect Fusion is beyond awesome, this blog post series focuses on the other big new feature of the Kinect for Windows (K4W) SDK 1.7: Kinect Interactions. Kinect Interactions allow developers to create interactive applications with a new, well-designed and ergonomically friendlier interaction language than before. The Kinect SDK can now detect a “push towards the screen” gesture to activate buttons, and this is the recommended “activate” gesture now instead of the old “hover, wait until the circle fills and its pressed” gesture.

Browsing lists larger than a dozen or so items has been even more difficult using Kinect. The recommended solution was to implement a “swipe from side” gesture, which paged through items on the screen. Here is such a list, straight from my XBox:

WP_20130322_002

You can see that the list has 358 games, and 5 of them are visible at the same time. To get through even half of this list, you would have to perform the swipe gesture 36 times! This is extremely slow, frustrating and physically exhausting.

The latest K4W SDK solves this issue by differentiating between an open and a closed hand. When you close your hand, you “grip” whatever’s underneath it (such as a scrollviewer), and then you can move your hand to scroll. If you release the scroller while your hand is still moving, the scrolling keeps happening – similarly to the inertia scroll you are already used to on touch devices. You can close your hand again at any time, and stop the inertia – again, as you expected.

In this post, I will help you to get started with Kinect Interactions by creating a Hello World WPF app that uses the features mentioned above. In later posts, I will dive deeper into the Kinect Interactions SDK, show you how to customize the existing controls, create new ones and go deep into the lower levels of the InteractionStream to invent new ways of interacting with your app. But first, let’s see how you can get started with Kinect Interactions today!

Note: I am assuming that you are familiar with C# and WPF for this article series.

First Things First – Download and Install the bits

Assuming you already have a Kinect for Windows device (or at least a Kinect for XBox one, which doesn’t support Near Mode, but can be legally used for development, but not “going live”), the next step is to install the SDK. Head over to Kinect Developer Downloads and download and install the SDK, and then the Kinect for Windows Developer Toolkit. After everything is done, launch the Kinect Developer Toolkit Browser from your start menu, and verify that the computer sees your Kinect by launching the “Kinect Explorer – WPF” sample. If all’s good, you can play a little with the samples called “Controls Basics – WPF” and “Interaction Gallery – WPF” to experience Kinect Interactions for yourself.

Create the Project

First, create a new WPF Application project called “GettingStarted”.




Add the following references:

From the C:\Program Files\Microsoft SDKs\Kinect\v1.7\Assemblies\ folder, add Microsoft.Kinect.dll.

From the C:\Program Files\Microsoft SDKs\Kinect\Developer Toolkit v1.7.0\Assemblies\ folder, add Kinect.Toolkit.dll, Kinect.Toolkit.Controls.dll and Kinect.Toolkit.Interaction.dll

Initializing the Kinect Sensor with KinectSensorChooser

The first control we will use from the Microsoft.Kinect.Toolkit.Controls namespace is the KinectSensorChooserUI. It is a fairly boring control, but it is nonetheless important: it indicates the status of the Attached Kinect Sensor, and can inform the user if the sensor is unplugged, plugged into the wrong USB port, etc.

In the MainView.xaml, add the following namespace:

xmlns:k=http://schemas.microsoft.com/kinect/2013

Then add the KinectSensorChooserUI control to the main grid:

<Grid>
    <k:KinectSensorChooserUI HorizontalAlignment="Center" VerticalAlignment="Top" Name="sensorChooserUi" />
</Grid>



We also need to initialize the KinectSensorChooser from the codebehind with some boilerplate code (I took these from the K4W samples).

Add a private field to the MainWindow codebehind:

private KinectSensorChooser sensorChooser;



Set up an event handler for the OnLoaded event in the MainWindow constructor (or in XAML, as you wish):

public MainWindow()
{
    InitializeComponent();
    Loaded += OnLoaded;
}



And create the OnLoaded event handler:

private void OnLoaded(object sender, RoutedEventArgs routedEventArgs)
{
    this.sensorChooser = new KinectSensorChooser();
    this.sensorChooser.KinectChanged += SensorChooserOnKinectChanged;
    this.sensorChooserUi.KinectSensorChooser = this.sensorChooser;
    this.sensorChooser.Start();
}



If a sensor is chosen or got initialized, the code above will invoke the SensorChooserOnKinectChanged event handler. Let’s keep this one simple for now, just add a MessageBox to indicate things happened:

private void SensorChooserOnKinectChanged(object sender, KinectChangedEventArgs args)
{
    MessageBox.Show(args.NewSensor == null ? "No Kinect" : args.NewSensor.Status.ToString());
}

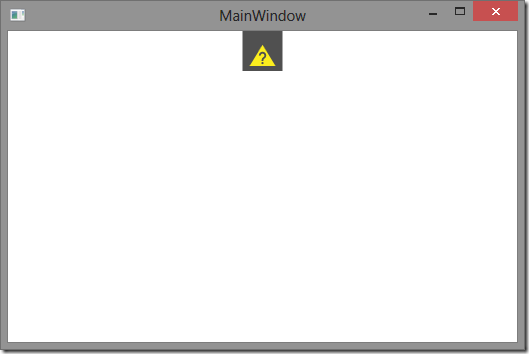

Now we can run the app. First, let’s see what happens if there are no Kinects connected to the computer:


Also, sensorChooser.Kinect is null in this case.

If the mouse is moved over the little box above, it expands, and shows a more detailed help on the required action. Nice!


The help link takes you to a Microsoft web page about Kinect for Windows.

If you connect the Kinect Sensor now, the KinectSensorChooserUI will switch to an “Initializing” mode:

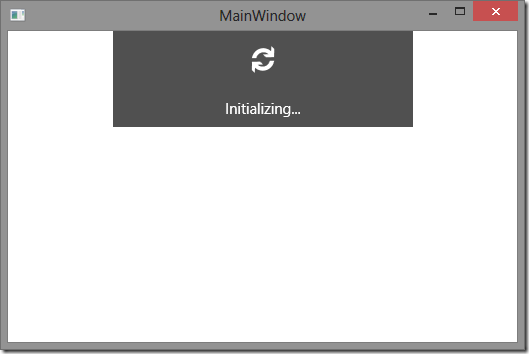

With the mouse hovering over it:


… and after a while, the Kinect sensor will be initialized, and the event handler with the MessageBox will get called:


After this, the Kinect chooser UI disappears until there’s a problem.

The KinectChooserUI control can also warn the user to move the Kinect to another USB port, check the power supply, etc. Here are the possible statuses:

public enum KinectStatus
{
  Undefined,
  Disconnected,
  Connected,
  Initializing,
  Error,
  NotPowered,
  NotReady,
  DeviceNotGenuine,
  DeviceNotSupported,
  InsufficientBandwidth,
}

Setting up the Kinect for Interactions

Now that we made sure that we have a properly connected Kinect sensor, it’s time to get it to work with some more boilerplate code. Let’s replace the temporary SensorChooserOnKinectChanged event handler with the real stuff:

   1:  private void SensorChooserOnKinectChanged(object sender, KinectChangedEventArgs args)
   2:  {
   3:      bool error = false;
   4:      if (args.OldSensor != null)
   5:      {
   6:          try
   7:          {
   8:              args.OldSensor.DepthStream.Range = DepthRange.Default;
   9:              args.OldSensor.SkeletonStream.EnableTrackingInNearRange = false;
  10:              args.OldSensor.DepthStream.Disable();
  11:              args.OldSensor.SkeletonStream.Disable();
  12:          }
  13:          catch (InvalidOperationException)
  14:          {
  15:              // KinectSensor might enter an invalid state while enabling/disabling streams or stream features.
  16:              // E.g.: sensor might be abruptly unplugged.
  17:              error = true;
  18:          }
  19:      }
  20:
  21:      if (args.NewSensor != null)
  22:      {
  23:          try
  24:          {
  25:              args.NewSensor.DepthStream.Enable(DepthImageFormat.Resolution640x480Fps30);
  26:              args.NewSensor.SkeletonStream.Enable();
  27:
  28:              try
  29:              {
  30:                  args.NewSensor.DepthStream.Range = DepthRange.Near;
  31:                  args.NewSensor.SkeletonStream.EnableTrackingInNearRange = true;
  32:                  args.NewSensor.SkeletonStream.TrackingMode = SkeletonTrackingMode.Seated;
  33:              }
  34:              catch (InvalidOperationException)
  35:              {
  36:                  // Non Kinect for Windows devices do not support Near mode, so reset back to default mode.
  37:                  args.NewSensor.DepthStream.Range = DepthRange.Default;
  38:                  args.NewSensor.SkeletonStream.EnableTrackingInNearRange = false;
  39:                  error = true;
  40:              }
  41:          }
  42:          catch (InvalidOperationException)
  43:          {
  44:              error = true;
  45:              // KinectSensor might enter an invalid state while enabling/disabling streams or stream features.
  46:              // E.g.: sensor might be abruptly unplugged.
  47:          }
  48:      }
  49:  }

This code handles properly Shutting down the old Kinect Sensor (you can have multiple sensors connected to the PC) and starts up the Depth- and Skeleton streams for the new one. In Lines 31 and 32, near mode and seated skeleton tracking are turned on – these are optional, but I found them useful for my little developer corner.

The Kinect Region

The last step before we can see something from Kinect Interactions is to add a KinectRegion to the XAML. KinectRegion is the key element of Kinect Interactions on WPF: it is the screen area where interactive elements are placed and can be manipulated. KinectRegion is also responsible for displaying and moving the hand cursor. An application can have multiple KinectRegions, but they cannot be nested. Each KinectRegion can have their own respective Kinect sensor.

Let’s add a KinectRegion to the main Grid of the MainWindow, thus making it stretch the entire window:

<k:KinectRegion Name="kinectRegion">
</k:KinectRegion>



Also, let’s make sure that the KinectSensor property of this KinectRegion is set to the actual Kinect by adding the following at the end of the SensorChooserOnKinectChanged event:

if (!error)
    kinectRegion.KinectSensor = args.NewSensor;



If you run the app now, you get one more error:

“Unable to invoke library 'KinectInteraction170_32.dll'.”


This is a common problem with Kinect beginners. The dll mentioned can be a bit tricky to find. The simplest way is to install the Controls Basics – WPF source code from the Developer Toolkit Browser (press the Install button) – or just download the sample project for this article (as long as you are targeting the same, 1.7 Kinect SDK).


Go to the AnyCPU.Debug folder of the sample’s installation directory and copy the KinectInteraction170_32.dll and KinectInteraction170_64.dll files to your project’s output directory. Now the app should run. Note: you may have to wait as much as 20 seconds for the Kinect Sensor to initialize. During this process, your application will not respond and will show a wait cursor if you move the mouse over it.

If all is OK, you should be able to raise one of your hands in front of you, and see a Hand Cursor representing it in your Main Window. You may have to wiggle around a bit so that the Kinect Sensor can detect you as a user.


For the screenshot above, I have also launched Kinect Studio. The Depth Viewer and Kinect Studio windows are not part of our application. Kinect Studio helps monitor the data our application receives. It can also record the Kinect’s output and allows you to play back the same user actions later. You can learn more about Kinect Studio on MSDN.

User Viewer

The next control we discuss is the Microsoft.Kinect.Toolkit.Controls.KinectUserViewer. Let’s add it to the main Grid:

<k:KinectUserViewer VerticalAlignment="Top" HorizontalAlignment="Center"
k:KinectRegion.KinectRegion="{Binding ElementName=kinectRegion}" Height="100" />


The KinectUserViewer displays the depth pixels that belong to an identified user or users. You can use the KinectUserViewer control to make sure that the Kinect SDK “sees” you as a human and is able to separate you from the surroundings. If you see nothing in the KinectUserViewer (after the Kinect initialization has finished), it means that the Kinect is not tracking you, it hasn’t identified you as a person yet. Try to move around, and remember that you need to be at least a meter (or even more) away from the sensor for it to detect you.



Interactive Controls

So far we managed to notify the user of the Kinect Sensor’s state, put a hand cursor on the screen that followed the user’s hand and to show an outline of the user. It’s time for the hand to actually do something! The first such something is going to be pressing a button.

The KinectTileButton

The KinectTileButton is one of the simplest controls available. It resembles a Windows 8-style tile with a template-able label and a Content that is just like the content of the regular Button control. Here is a very simple declaration of the KinectTileButton that should be put inside the main Grid of MainWindow.xaml:

<k:KinectTileButton Label="Press me!" Click="ButtonOnClick"></k:KinectTileButton>



To handle the button’s Click event, let’s just do a simple MessageBox:

private void ButtonOnClick(object sender, RoutedEventArgs e)
{
    MessageBox.Show("Well done!");
}


The KinectButton control has a nice Kinect-purple color by default. Here’s what it looks like: (Note: I’ve changed window height and width to 600x500 for more space)


If you move the hand cursor over the KinectButton it grows a little to indicate the “hover” state. The hand cursor also changes subtly.




If you start to move your hand towards the screen (attempting to perform the “press” gesture), the hand will begin to fill up with a purple circular pattern.




When you actually press the button, the button will play some visual effects, and the cursor’s fill color will change again. Then, our ugly little MessageBox will show up, indicating that the button has indeed been pressed, and the proper event handler was called. Nice!


The KinectCircleButton

The next button type works a lot like the KinectTileButton. However, in order to show it, we first need to change the existing xaml a little bit. The KinectRegion is a ContentControl, which means it can only have one child. Luckily, this Child can be a control that in turn can contain multiple children – such as a Grid or a StackPanel. For now, we will need to surround the existing KinectTileButton with a Grid. I’ve also moved the KinectTileButton to the left side to leave some space for the KinectCircleButton we are about to add. The button has a content (which, again can be anything, including an image or a much more complex element), and a Label. The KinectCircleButton resembles the RoundButton of Windows Phone. Let’s add it to the Grid we just added inside the Kinectregion:

<k:KinectCircleButton Label="Circle" HorizontalAlignment="Right" Height="200" Click="ButtonOnClick">Hi</k:KinectCircleButton>



This is what the application looks like now:


Moving the hand above the KinectCircleButton, we can see that it also has an “over” state, and changes the look of the hand just like the KinectTileButton did.


Moving the hand towards the screen:

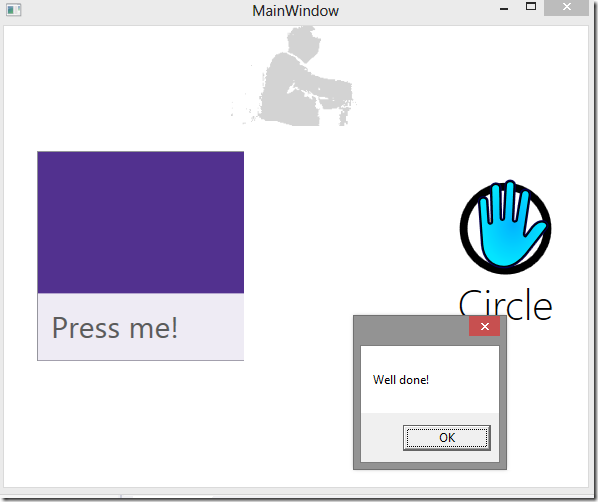

… and finally pressing it:




It is good to know that these interactive elements also work with the mouse. This way you can test the app itself without using Kinect. Kinect initialization can takes 15 seconds or more, so to test your app’s logic, UI and flow, you may even want to disconnect the Kinect to get the app started faster.

They See Me Scrollin’

As I said in the Introduction, browsing a big list of items and selecting the one you want has always been difficult with Kinect – but with the latest Kinect SDK, this situation is vastly improved. The key is the third (and last) out-of-the-box control of the 1.7 SDK: the KinectScrollViewer. Let’s place a KinectScrollViewer at the bottom of our window by pasting the code below into the Grid inside the KinectRegion:

<k:KinectScrollViewer VerticalScrollBarVisibility="Disabled" HorizontalScrollBarVisibility="Auto" VerticalAlignment="Bottom">
   <StackPanel Orientation="Horizontal" Name="scrollContent" />
</k:KinectScrollViewer>

This looks exactly like a standard WPF ScrollViewer. It even has a StackPanel called “scrollContent”, and these two controls are set up to scroll horizontally. Let’s fill up the StackPanel with some KinectCircleButtons. For this, add the following lines to the OnLoaded event handler in the code behind:



//fill scroll content
for (int i = 1; i < 20; i++)
{
    var button = new KinectCircleButton
                        {
                            Content = i,
                            Height = 200
                        };

    int i1 = i;
    button.Click +=
        (o, args) => MessageBox.Show("You clicked button #" + i1);

    scrollContent.Children.Add(button);
}

If we run the application now, this is what it looks like:


Moving the hand over the scrollable area, it changes color:


The trick now is to close your hand and make a fist, as if you were grabbing something. The hand cursor will change, indicating that you indeed grabbed onto the KinectScrollViewer:


Now you can move your hand, and the KinectScrollViewer will “stick to it”, much like when you scroll a list on a touch device, such as a phone or a tablet. If you open your hand, you will release the KinectScrollViewer. If you push your hand forward, you can select easily one of the items in the list and get the corresponding MessageBox:


Download

You can download the demo project for this article here.

Summary

In this post, I’ve introduced you to the basics to get started with a Kinect Interactions application – getting the Kinect sensor up and running, defining a KinectRegion, adding buttons and scrollable areas to it.

In the next posts of this series, I will dive deeper into the world of Kinect Interactions. We will dive deeper into the – unfortunately very sparsely documented – controls I discussed above, and see the customization options they offer. And finally, going deeper into the rabbit hole, we will examine the low level Interaction Stream.
